Made of 16mm thick laboratory grade Compact Laminate Boards (Max Resistance). These panels are composed of approved and tested raw materials. These materials are compressed under high pressure, emerge such a unique, homogeneous panels. These panels are ideal for all types of laboratories, for research centers, hospitals or doctor's surgery, photo laboratories, the foodstuffs industry and everywhere, where absolute cleanliness of a high resistant surface is demanded. These panels are resistant even to the most aggressive chemicals in extreme working conditions of the laboratory sector. Top is supplied with Polypropylene oval cup sink with polypropylene bottle trap.

Made of solid Phenolic core panels which are high pressure solid composite panels specified designed for laboratory use and case work. These Panels provide resistance to moisture, chemical, corrosion, stains impact and stress cracking.

Aerodynamic shape airfoil made of stainless steel fitted on the front edge of the worktop.

Made form 6mm toughened glass. Sliding sash is supported by a counterbalance on nylon covered steel wires, with ball bearing pulleys. Sash is supplied with full width handle.

Fittings are of European Origin. Nozzles with the possibility of disassembly are in compliance with DIN 12898 regulations. Handle are in compliance with EN13792:2000 norm, manufactured in ABS; acid resistant material. Threads in compliance with ISO228/1 regulation, B tolerance class. Fume cupboard is supplied with the following fittings:
▪ Water outlet with front controlled valve.
▪ Gas outlet with front controlled valve.

Light fitting is connected to a switch fitted on the front operating panel.

Fume Hood is supplied with fan switch with light indicator, light switch and 13 AMP double electrical sockets. All fittings positioned on the front panel.

Have the same specifications as those for laboratory furniture cabinets.

H-frame, constructed from 30x30x1.5mm square steel section, epoxy powder coated. Framework supplied with adjustment feet ± 15 mm.

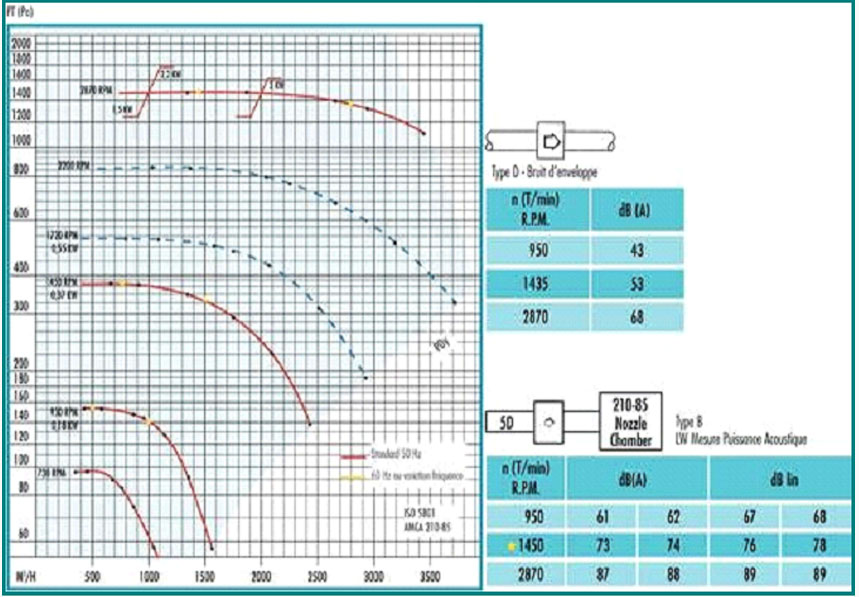

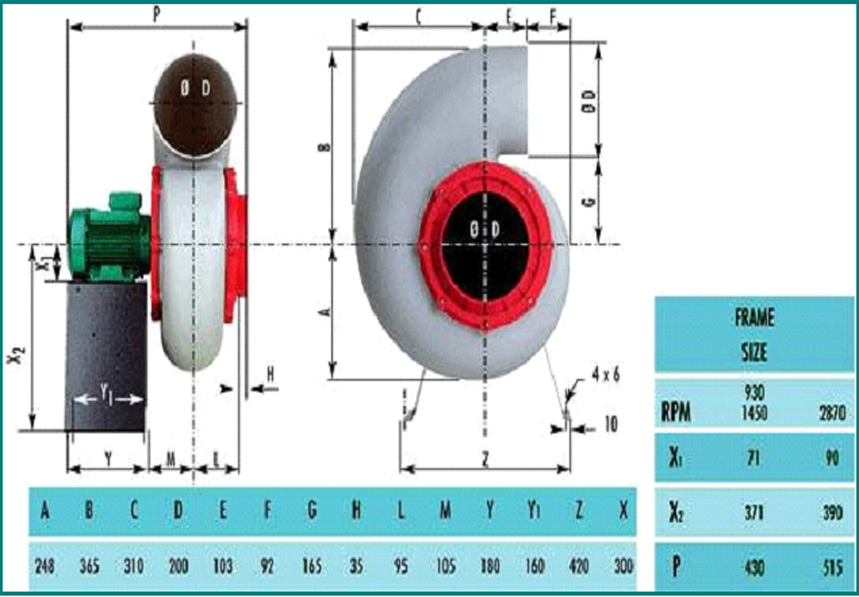

Fume cupboard is supplied with polypropylene Centrifugal Extractor Fan with IP 55 protection. Fan house is UV resistant, house and wheels are made of polypropylene. Fans are supplied with suitable motor base .Fan capacity: 1500m³/h, speed: 1450 rpm, 0.37kw. Each fan is supplied with motor base. Duct is made of round PVC, d: 200mm, quantities of elbows and flexible duct to be determined as per site measurements.

Fume cupboard is supplied with Air-flow monitor, which is a safety device used to measure face velocity of air entering the open sash area with audiovisual low air alarm.
